  • Laser Scanner Sphere

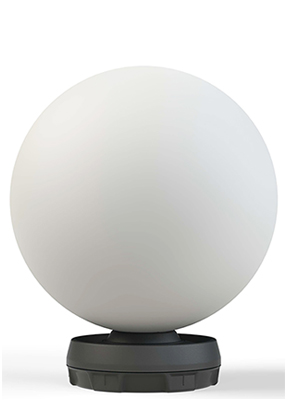

Laser Scanner Sphere magnetic
RSLB10M

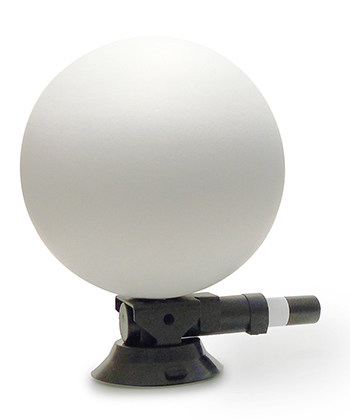

Laser Scanner Sphere with suction cup
RSLB10SV

Laser Scanner Sphere with magnetic base / with suction cup

  • Plastic scanning sphere featuring special matt textured lacquer for optimum reflection behaviour.

  • Shock-resistant plastic. Washable and dishwasher-safe surface

  • Fixed points for linking several viewpoints

  • Assignment of spatial reference information to a geodata set

  • Can be used from all sides

  • Suitable for indoor and outdoor use
 Laser Scanner Sphere with special magnetic base:

  • Special magnetic base with 11 magnets for all metallic surfaces and other application

  • With recess for use in conjunction with RSFP-X90 fixed points

  • For use in conjunction with RSFP-X95 and RSFP-X96 adapters:

    A) This allows the laser scanner sphere to be placed on any standard tripod or trivet. See fig.

    B) This allows the laser scanner sphere to be placed exactly over an RS Mini Prism. See fig.

  • The 100 mm tilt axis height corresponds to common prisms so that the XYZ coordinates can also be determined easily and precisely using a total station

 Laser Scanner Sphere RSLB10SV
or Suction Cup RSSV-X90

  • Enables the use of the laser scanner sphere on any smooth surface such as glass or smooth furniture fronts without drilling or gluing!

Technical data:

Diameter: Ø 145mm
Tilting axis height: 100 mm (RSLB10M)
Weight of scanner sphere (sphere only): 250 g
Sphericity: 0.3 mm at 20 ºC
Accuracy radius: ± 0.15 mm at 20 ºC

Dimensioning file RSLB10M and RSLB10SV.pdf for download.
Here you find a dimensioning file for each RS product.

Example of use RSLB10M on trivet Example of use RSLB10M over RSMP380 Tilting axis height: 100 mm

Kippachshöhe 100 mm bei RSLB10M, RSL422M, RSMP380 und RS183

 b_0_200_16777215_00_images_Anwendungsbeispiele_RSLB10M_P1050116.jpg   b_0_200_16777215_00_images_Anwendungsbeispiele_RSLB10M_P1050118.jpg   Laserscanner-Kugel mit Saugnapf RSLB10SV in Kunststoff-Rohr   Laserscanner-Kugel mit Saugnapf RSLB10SV in Kunststoff-Rohr

ONE POINT FITS ALL


With the fixed points RSFP-X90, RSFP-X99, RSFP-X99-11+12, the adapter RSFP-X90-1, RSFP-X90-2 and RSFP-X90-3, RSFP-X90-5, RSFP-X90-20, -21, -25, -26, RSFP-X98 as well as the suction cup RSSV-X90, reflective targets, mini prisms and laser scanner- and drone targes can always be repositioned in exactly the same place.

More information...

DIMENSIONING

Find here an overview of dimension files.
