RS183

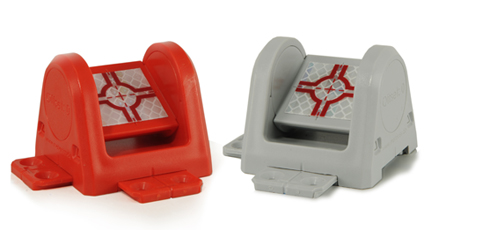

RS183 Plastic housing with 30 x 30 mm reflective target
can be rotated through 180° and combined with other RS183!

RS183 sticks quickly and easily even to difficult surfaces, e.g. glass and marble façades, historic buildings, steel girders, rails, gas and oil pipelines, etc. or can be attached using plugs and screws..

When using tachymeters and robotic total stations

  • the reflective target can always be aligned accurately with the measuring instrument
  • the reflective target can be turned in a radius of 180° making it possible to use the same survey point from different directions
  • several reflective targets can be combined with each other due to the integrated connector system, making it possible to survey from different directions without having to turn the target – see examples

Range approx. 80 m
Offset: 0
Height of tilting axis: 30 mm


Examples of RS183 in combination:

  b_120_0_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_2.jpg b_120_0_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_3.jpg   b_120_0_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_6.jpg  b_120_0_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_8.jpg   b_120_0_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_14.jpg b_200_150_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_Fixpunkt_0001-800.jpg b_200_150_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_Fixpunkt_0002-800.jpgb_200_150_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_Fixpunkt_0003-800.jpg b_200_150_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_Fixpunkt_0004-800.jpg b_200_150_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_Fixpunkt_0005-800.jpg b_200_150_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_Fixpunkt_0006-800.jpg b_200_150_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_Fixpunkt_0007-800.jpg b_200_150_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_Fixpunkt_0008-800.jpg b_200_150_16777215_00_images_RS183_RS183_ANWENDUNGSVARIATIONEN_Fixpunkt_0009-800.jpg b_200_151_16777215_00_images_RS183_RS183r_Irland-800.jpg

UNIVERSAL MOUNTING PLATE RSFP-X80g


The mounting plate can be glued to almost any substrate.

The prisms RSMP180, RSMP280, RSMP380 and the reflector marks RS183 can be clicked on and off the mounting plate easily.

Click into place, take your measurment and remove after the measurement has been taken, re-mount again if need be.

The prism of reflector marks can be attached to the mounting plate in all orientations; the measuring point remains the same. Readings can be taken from all directions.

PROTECTIVE CAP RSPC10

RSPC10
Plastic cover RSPC10 protects prisms/reflective targets against dirt.

Magnetic protective cap RSPC10M is available for hard to reach points, on tunnel roofs for example.

Protective cap RSPC10M can easily be removed from the prism and replaced using metal cube RSPC50.

METAL CUBE RSPC50 with 5/8' thread

RSPC50_animation

Metal cube RSPC50 is screwed onto a prism rod using the 5/8' thread. This makes it easy to remove and replace the magnetic protective caps (RSPC10M) from the plastic housing – even in difficult positions.

RSMK-FIX ADHESIVE

RSMK-fixPowerful fixing adhesive with immediate initial adhesion.

Free from isocyanate and silicone.

Permanently elastic and suitable for a wide range of uses.

Odourless.

RSMK-fix is suitable for all products by Rothbucher Systems.

Can be applied using all common dosing pistols.
