One Fixed Point For All Instruments
Create fixed points quickly, easily and permanently – a unique system with multiple options
Using the correct offset, the surveyor always obtains the same survey point or the same XYZ coordinates. Find detailed information here about the matching RS products in four different tilting axis heights.
The OPFA system simplifies the complexities of modern, networked requirements in the world of construction and surveying - from traditional surveying to the digital construction site.
Let’s work together to find the best solution for your daily project needs. Schedule your online appointment here.
This email address is being protected from spambots. You need JavaScript enabled to view it.
Our new video "One Point Fits All" gives you an overview about the Fixed Point System RSFP-X90.
Let’s work together to find the best solution for your daily project needs. Schedule your online appointment here.
This email address is being protected from spambots. You need JavaScript enabled to view it.
Fixed Point System RSFP-X90 for all RS products with magnetic base
One reference point for all instruments: Total stations, robotic total stations, scanners, drones, Lidar, SLAM, Mobile Mapping, GPS and GNSS!
|
|
|
RSFP-X90 - the best-known fixed point from this series
- Fixed Point for all RS products with magnetic base
- When using products with the same tilting axis height the reference point always remains exactly the same!
RSFP-X90-B variants with laser engraving
- RSFP-X90-B1 with English engraving
- RSFP-X90-B2 with German engraving
- RSFP-X90-B3 custom engraved
- RSFP-X90-B4 custom engraved and numbered
|
 |
 |
RSFP-X92
- With the fixed point RSFP-X92, additional information such as FFL (Finisehd Floor Level), axis, and position number can be documented
|
|
 |
RSFP-X93
- With the fixed point RSFP-X93, an installation with blind rivets is possible
|
|
 |

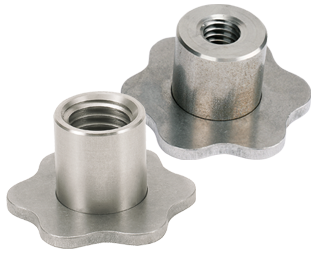

RSFP-X90-1+3
- RSFP-X90 fixed point as separate version with a 5/8” (RSFP-X90-1) or 3/8” (RSFP-X90-3) female thread
- When used with a tripod with 5/8” or 3/8” UNC threaded rod
|
 |
 |
RSFP-X90-2
- RSFP-X90 fixed point as separate version with a 5/8” male thread
- When used with a tripod with 5/8” UNC threaded rod or in combination with the RSA-5/8-1 adapter
|
|
 |
RSFP-X90-m6, RSFP-X90-m8 and RSFP-X99-m6
- Fixed Point RSFP-X90 as a separate version with a m6 thread (RSFP-X90-m6) and a m8 thread (RSFP-X90-m8).
|
|
 |
RSFP-X90-30 to 39*
- Power socket adapter – smart solution for reference points inside
- *different country versions
- Ideal for digital 3D surveys
|
 |
 |
RSFP-X90-74
- For fast and precise reference points on elements such as beams, door and window jambs, wall openings, etc
|
|
 |
RSFP-X90-5 and RSFP-X99-5
-
In combination with Leica bolts there is the RSFP-X90-5 adapter, enabling all our products with a magnetic base to be easily attached to any Leica bolt.
-
If greater magnetic adhesion to the adapter is desired or required, we recommend the RSFP-X99-5 adapter (e.g. in tunnels).
|
|
 |
RSSV-X90, RSSV-X99
- Suction Cup for all glass surfaces and smooth surfaces, indoors and outdoors
- If greater magnetic adhesion to the adapter is desired or required, we recommend the suction cup RSSV-X99
|
|
 |
RSFP-X90-20, RSFP-X90-21, RSFP-X99-20, RSFP-X99-21
- Fixed points with heavy duty anchor for quick and safe mounting of reference points on rocks, difficult surfaces or on historic buildings in the mortar joint.
- If greater magnetic adhesion to the adapter is desired or required, we recommend the adapter RSFP-X99-20 and RSFP-X99-21
|
 |
 |
RSFP-X90-25, RSFP-X90-26, RSFP-X99-25, RSFP-X99-26
- Fixed point RSFP-X90 and RSFP-X99 for clamping points or pipes
- If greater magnetic adhesion to the adapter is desired or required, we recommend the adapter RSFP-X99-25 and RSFP-X99-26
|
 |
 |
RSFP-X97-2, RSFP-X97-3
|
|
 |
RSFP-X98-1, RSFP-X98-2, RSFP-X98-3, RSFP-X98-4
- The ground stand is available straightaway for every instrument at any location
- RSFP-X98-2 with spirit level, also suitable for staking out
- RSFP-X98-3 also for GNSS and GPS antennas
- RSFP-X98-4 with an exchangeable tip for GNSS and GPS antennas
|
 |
 |
RSFP-X99
- Fixed Point for difficult ground
|
 |
 |
RSFP-X99M
- The quickest and easiest way to create a reference point on any magnetic surface
|
|
 |
RSFP-X99-1
- Fixed Point for tripod or tribrach
|
|
 |
RSFP-X99, RSFP-X99-11+12
- For quick fixed points on construction sites and for BIM reference points in tunnels
- Quick fixing on difficult substrates
- Long-term solution for monitoring
|
|
 |
RSFP-X99-70
- Fixed Point for tension belts
|
|
 |
RSFP-X99-73
Fixed Point for pipes and scaffolding with ∅ 48 - 51 mm
|
|
 |
RSFP-X990 + RSFP-X99-80M
- Corner Adapter for Extending the Measuring Range Around Building Corners
|
|
 |
RSFP-X90-S40
- Control measurements of inside and outside corners
- Control measurements at recesses or at the edge of the ceiling
- Measurements on pillars – direct measurements can be taken on bevelled edges at the vertex!
- Transfer heights around the corner with marking attachment
- Measure of position and heights of corner blocks quickly and precisely when bonding clay blocks
|
|
| |
QR codes lead to respective application films on our YouTube channel
|
Dimensioning file Accessories for series RSFP-X90 to RSFP-X99 for download.
Here you find a dimensioning file for each RS product.
