Adapter set RSFP-X90-S40 for precise control measurements on corners, columns and ceiling edges.

Adapter-Set

RSFP-X90-S40

The adapters can be easily attached to one of the magnetic bases. The parts are automatically positioned correctly by the RSFP-X90 reference point (flower) and held by the magnets on the base plate.

Depending on the attachment, the user has now the following possibilities:

  • Control measurements of inside and outside corners
  • Control measurements at recesses or at the edge of the ceiling
  • Measurements on pillars – direct measurements can be taken on bevelled edges at the vertex!
  • Transfer heights around the corner with marking attachment
  • Measure of position and heights of corner blocks quickly and precisely when bonding clay blocks

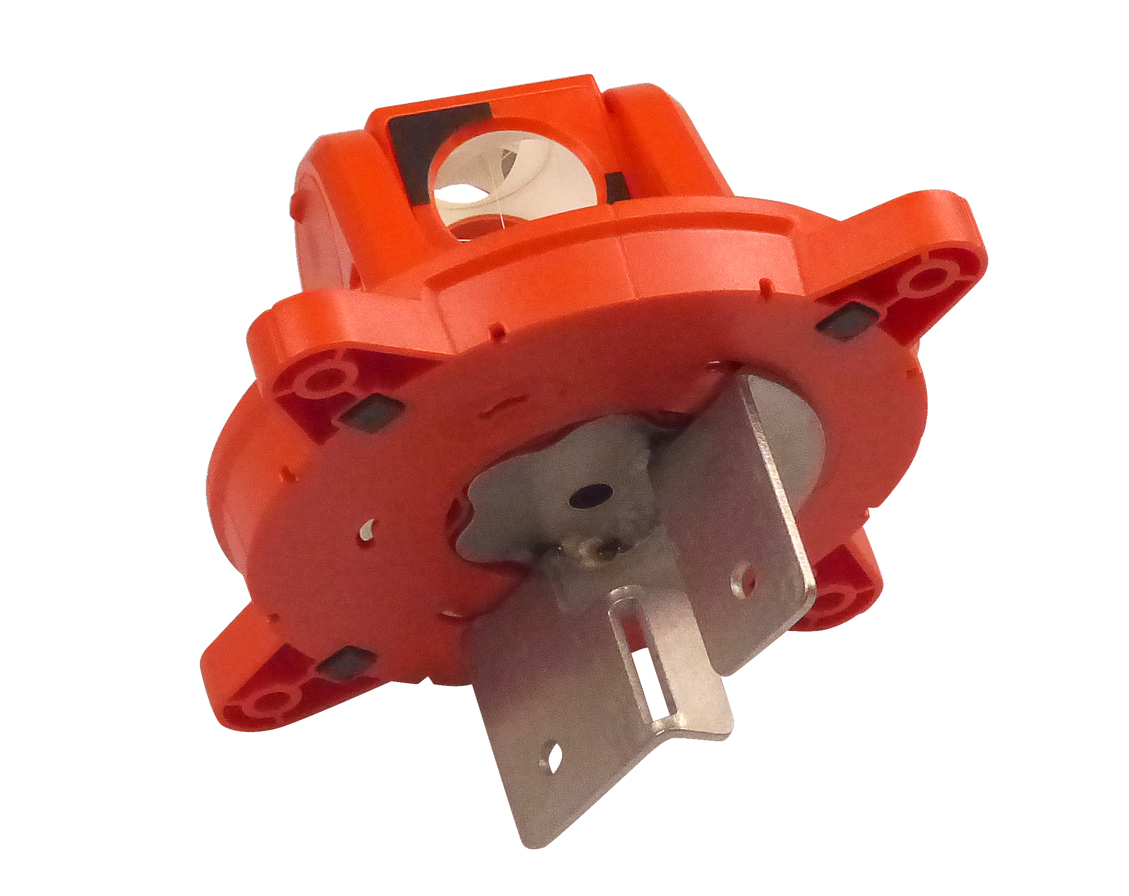

Adapter RSFP-X90-43 with the mini prism RSMP390M for measurements on columns and bends. Adapter RSFP-X90-43 with mini prism RSMP395M for measurements on columns and bends. Adapter RSFP-X90-43 and mini prism RSMP390M, bottom view.
Adapter for measurements on pillars and blends. Usable with all RS products with magnetic base - see above e.g. with miniprism RSMP390M and RSMP395M
Adapter RSFP-X90-44 with mini prism RSMP390M for control measurements of inside corners. Adapter RSFP-X90-44 with mini prism RSMP395M for control measurements of inside corners. Adapter RSFP-X90-44 and mini prism RSMP390M, bottom view.
Adapter for Control measurements of inside corners. Usable with all RS products with magnetic base - see above e.g. with miniprism RSMP390M and RSMP395M

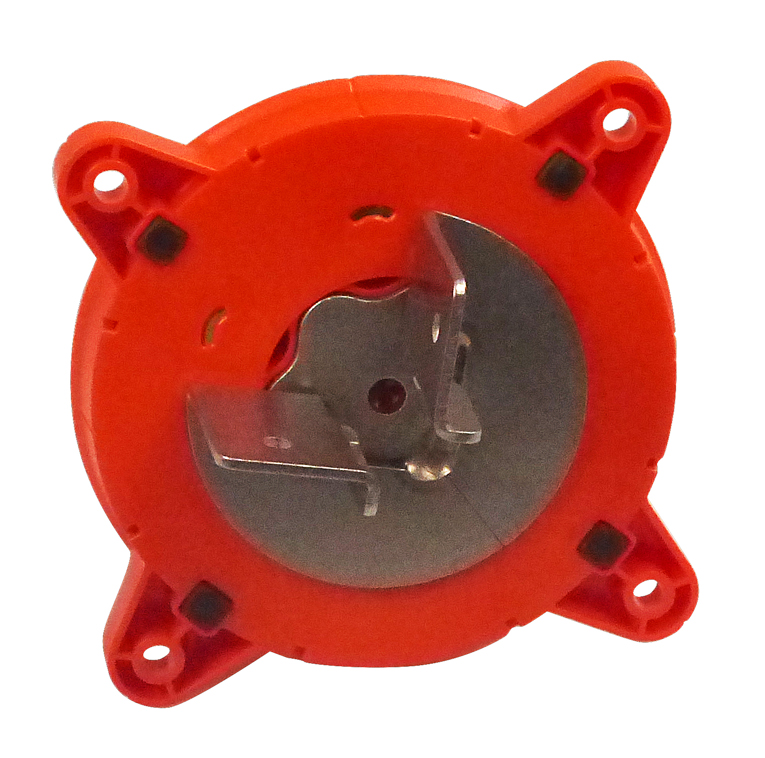

Adapter RSFP-X90-45 with mini prism RSMP390M for control measurements of outside corners. Adapter RSFP-X90-45 with mini prism RSMP395M for control measurements of outside corners. Adapter RSFP-X90-45 and mini prism RSMP390M, bottom view.
Adapter for Control measurements of outside corners. Usable with all RS products with magnetic base - see above e.g. with miniprminiprism RSMP390M and RSMP395M
All RS products that can be used with the RSFP-X90-S40 fixed point.

The illustration shows all the products that can be used with the RSFP-X90-S40 fixed point. Magnets in the base plate hold the reflective target or mini prism precisely on the desired spot.

If greater magnetic adhesion to the adapter is desired or required, we recommend the series RSFP-X99.

Tilting axis heights - Overview



Dimensioning file  Accessories for series RSFP-X90 to RSFP-X99 for download
Here you find a dimensioning file for each RS product.
