Adapter RSFP-X90-1 + RSFP-X90-3



Adapter RSFP-X90-2

The RSFP-X90 Fixed Point is also available as a separate version with a 5/8” female thread (RSFP-X90-1), with a 3/8” female thread (RSFP-X90-3) and 5/8” male thread (RSFP-X90-2).

Possible applications of the RSFP-X90-1, RSFP-X90-2 and RSFP-X90-3 are, for instance:

    • As an adapter for all RS products with magnetic base plates when used with a tripod or trivet with 5/8” UNC thread or 3/8” UNC thread

    • As an adapter for all RS products with magnetic base plates when using RS Mini Prisms RSMP280 or RSMP380 together with the Adapter RSA-5/8-1.

We also manufacture other models with different threads or attachments on request. For special requests, please contact us directly.

 applications for RSFP-X90-2, RSFP-X90-2 and RSFP-X90-3

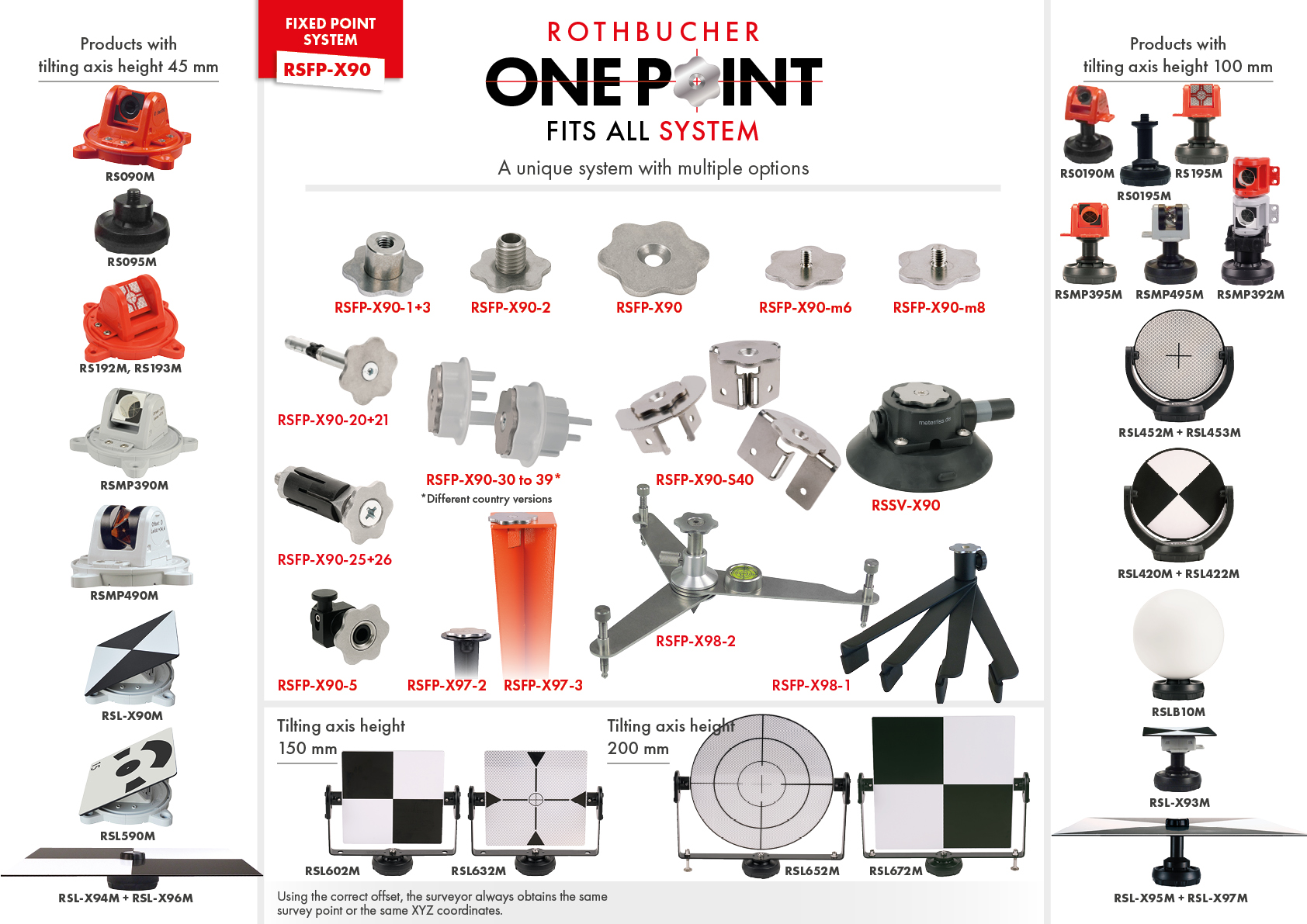

The illustration shows all the products that can be used with the RSFP-X90-1, RSFP-X90-2 or RSFP-X90-3 adapter.
Magnets in the base plate hold the reflective target or mini prism precisely on the desired spot.

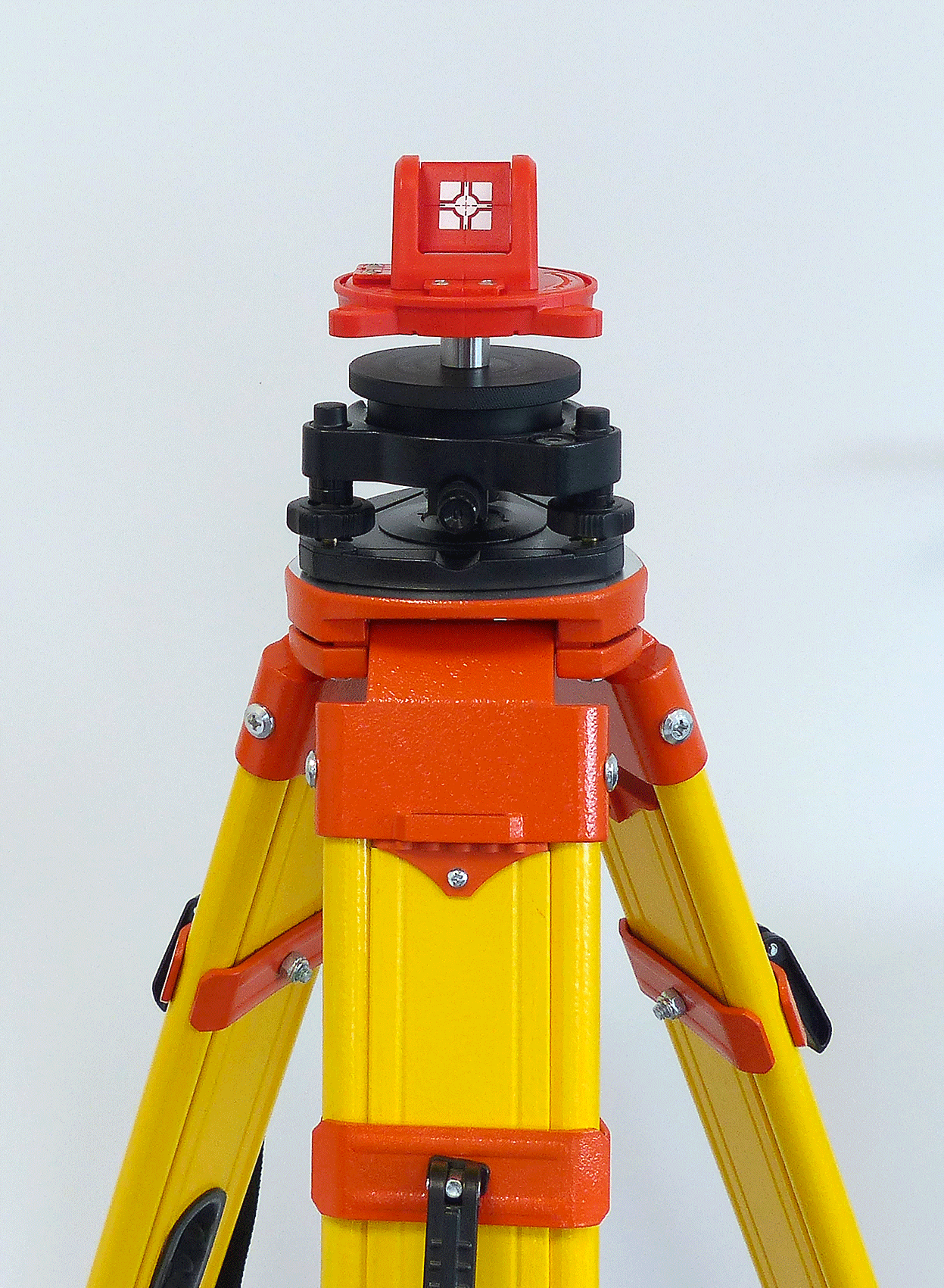

RSFP-X90-1 on trivet with several products



Example of use RSLB10M on trivet

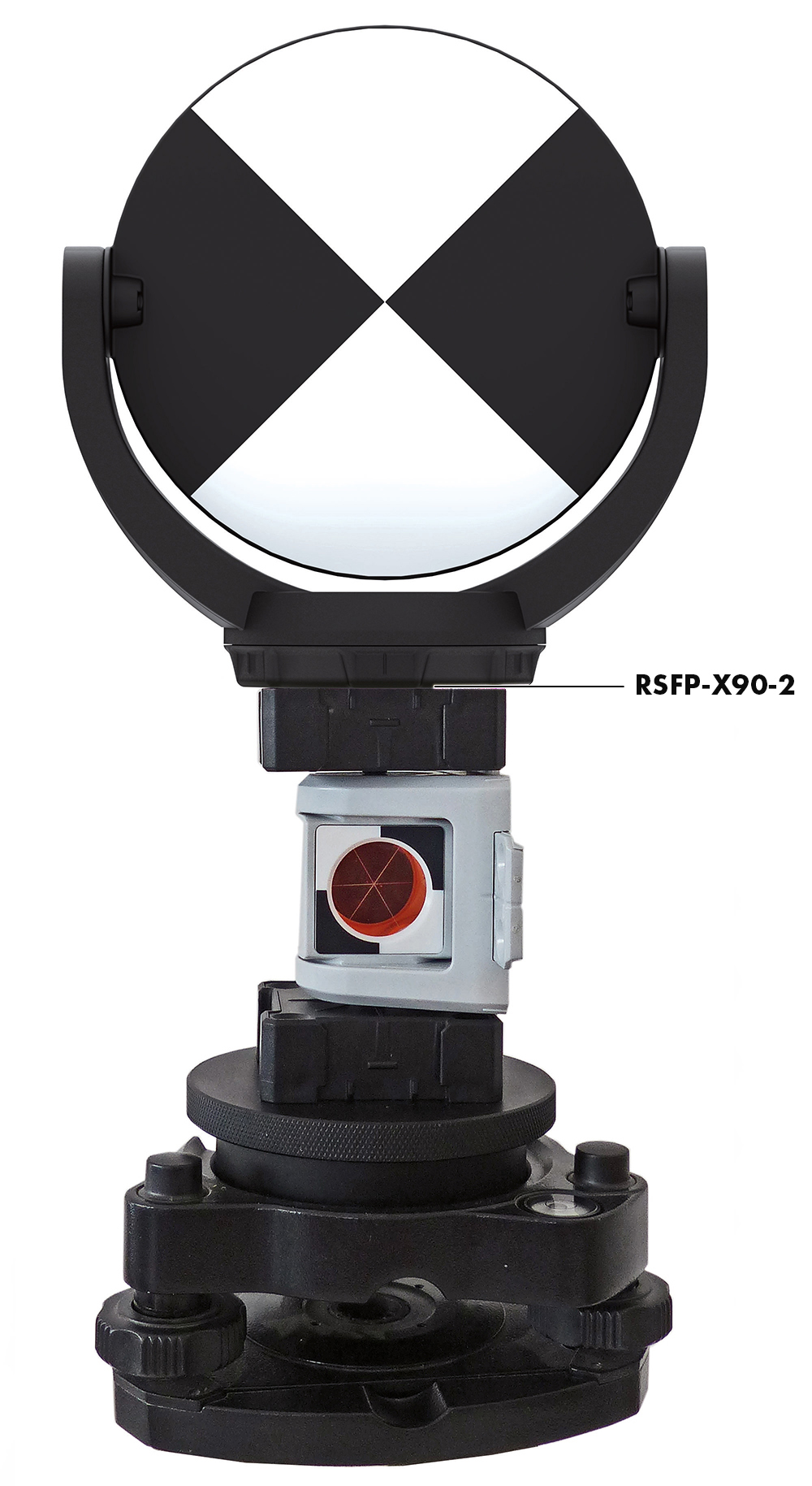

Example of use RSL422M over RSMP380




Dimensioning file Accessories for series RSFP-X90 to RSFP-X99 for download.
Here you find a dimensioning file for each RS product.
