Laser Scanner Targets RSL-X80 and RSL-X90M

Laser Scanner Targets

RSL-X80

RSL-X90M* (*magnetic)

The matching marker for the RSMP380 mini prisms

Popular for the perfect fit with the mini prisms RSMP390M*
  • Ideally suited for use with scanners from Leica, GeoMax, Faro, ZF and Trimble
  • Also perfectly suited for Lidar and SLAM, e. g. instruments from NavVis
  • Provides fixed points for linking multiple viewpoints
  • Assignment of spatial reference information to a geospatial dataset
  • Higher accuracy since the fixed point can be surveyed with total station in advance
  • (e. g. with the mini prism RSMP380 or rather with mini prism RSMP390M*)
  • If need be, all markers can also be permanently glued or fixed

In addition to the features of the RSL-X80, the RSL-X90M offers:
Fixed Point RSFP-X80 for RS183, RSMP280, RSMP380, RSL-X80, RSL580

Fixed Point RSFP-X90 for all RS products with magnetic base
For repeat surveys, only the reference point (RSFP-X80) remains on the object (e. g. on a façade).

For repeat measurements, only a small, barely visible, stainless steel survey mark (RSFP-X90) is left on the object as a reference point (e. g. on bridges or façades).
With the angled adapter RSA-X80g-1, the laser scanner target can exactly be fitted above the measuring point of the RS mini prism The RSL-X90M tilts up to 30 degree.
With the angled adapter RSA-X80g-1, the laser scanner target can exactly be fitted above the measuring point of the RS mini prism RSMP380.
The height offset is 60 mm.		 The RSL-X90M tilts up to 30 degree.

See here various fixing options from the RSFP-X80 reference point system.

We would be happy to advise you and work together to find the right solution for your requirements. Schedule an online appointment:

This email address is being protected from spambots. You need JavaScript enabled to view it.

See below various fixing options from the RSFP-X90 to RSFP-X99 reference point system.

We would be happy to advise you and work together to find the right solution for your requirements. Schedule an online appointment:

This email address is being protected from spambots. You need JavaScript enabled to view it.

RSFP-X80 Fixed Point System

Using the correct offset, the surveyor always obtains the same survey point and the same XYZ coordinates.

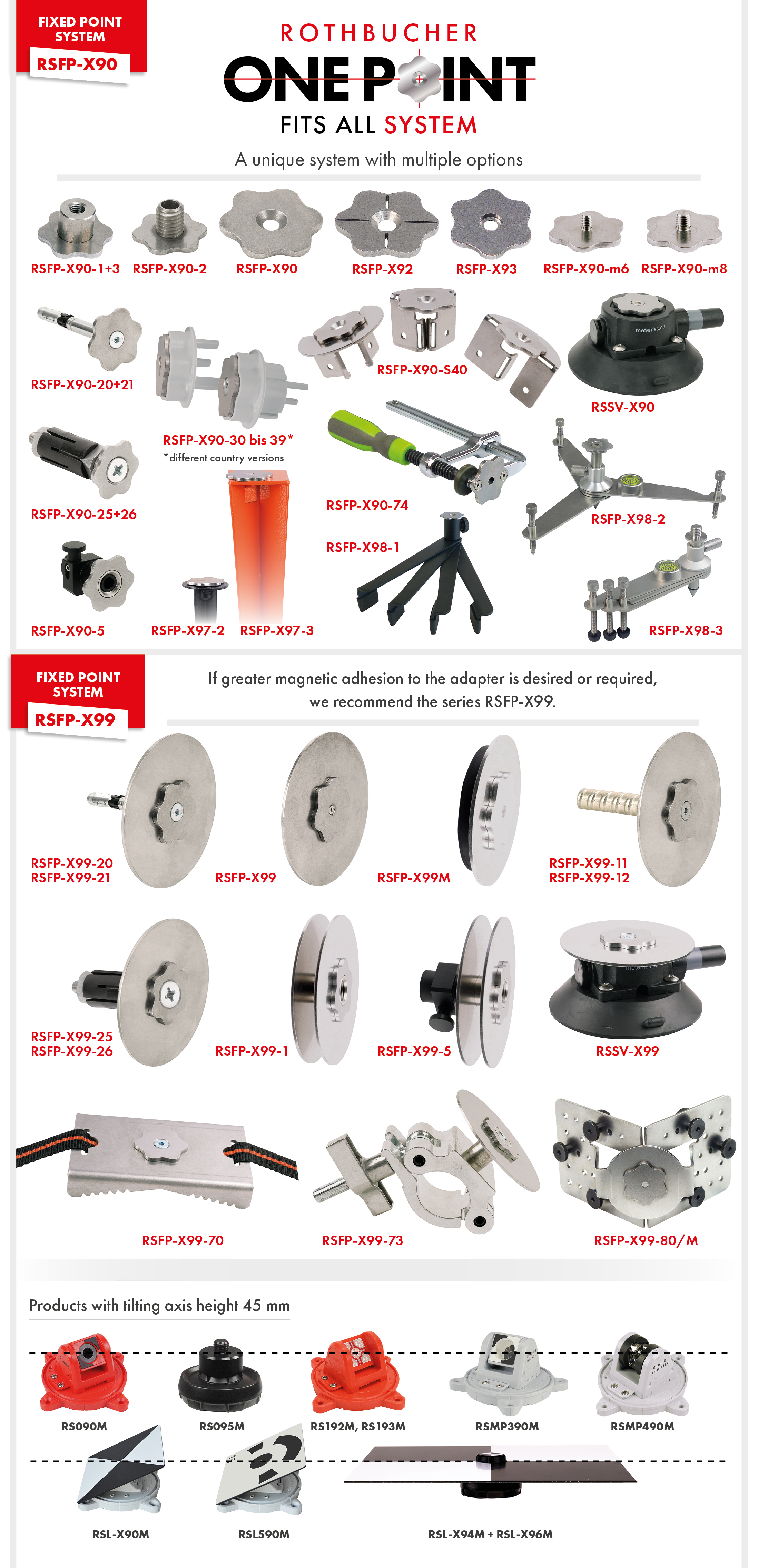

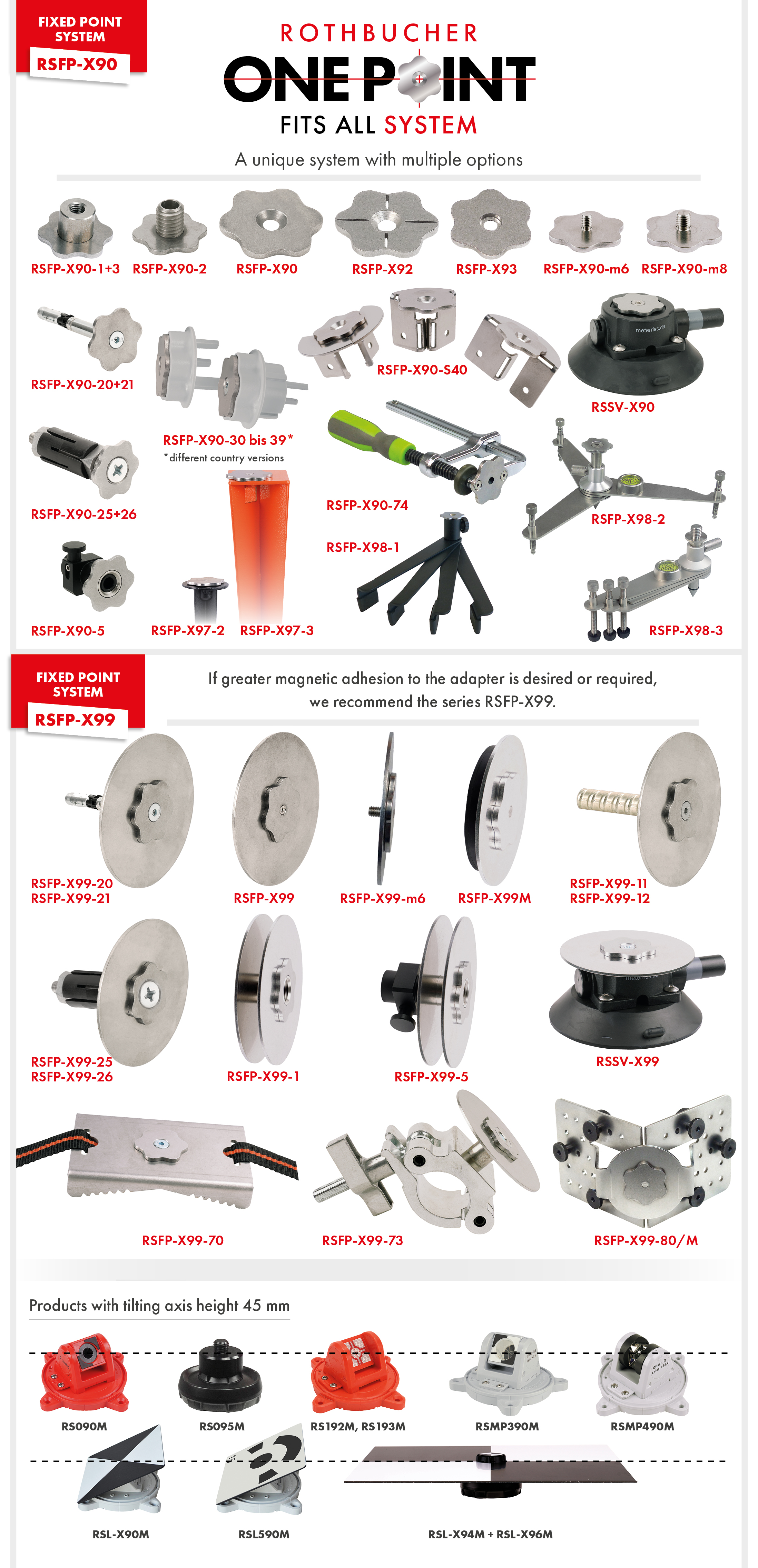

RSFP-X90 - RSFP-X99 Fixed Point System

Using the correct offset, the surveyor always obtains the same survey point and the same XYZ coordinates.



Dimensioning file RSL-X80.pdf and RSL-X90M.pdf for download.
Here you find a dimensioning file for each RS product
