Laser scanner target RSL420M and RSL422M
with swivel and tilt function, magnetic

Laser scanner target RSL422M and
Suction Cup RSSV-X90

Laser scanner target with special magnetic base

  • Ball bearing joints allow the laser scanner target to be aligned smoothly in any direction while always remaining precisely on axis and in position.

  • The target can be used as a scanner or drone target

  • Available in two versions:

    A) Article RSL420M – printed on one side with offset 0 and

    B) Article RSL422M – printed on both sides with offset +1.5 mm (can be used from two sides without rotating or swivel)

  • Fixed points for linking several viewpoints

  • Assignment of spatial reference information to a geodata set

  • Suitable for indoor and outdoor use

Magnetic base:

  • Special magnetic base with 11 magnets for all metallic surfaces and other applications

  • With recess for use in conjunction with RSFP-X90 fixed points

  • For use in conjunction with RSFP-X90-1, RSFP-X902 and RSFP-X90-3 adapters:

    A) This allows the laser scanner target to be placed on any standard tripod or trivet. See fig.

    B) This allows the laser scanner target to be placed exactly over an RS Mini Prism. See fig.

  • The 100 mm tilt axis height corresponds to common prisms so that the XYZ coordinates can also be determined easily and precisely using a total station.
    If necessary we also offer a combination of magnetic base, adapter an prism with a tilt axis height of 100 mm (see illustration below)

Suction cup RSSV-X90

  • Enables the use of the laser scanner target on any smooth surface such as glass or smooth furniture fronts without drilling or gluing!

Technical data:
Diameter: Ø 145mm
Tilting axis height: 100 mm
Weight: 500 g

Dimensioning file RSL420M and RSL422M.pdf for download.
Here you find a dimensioning file for each RS product

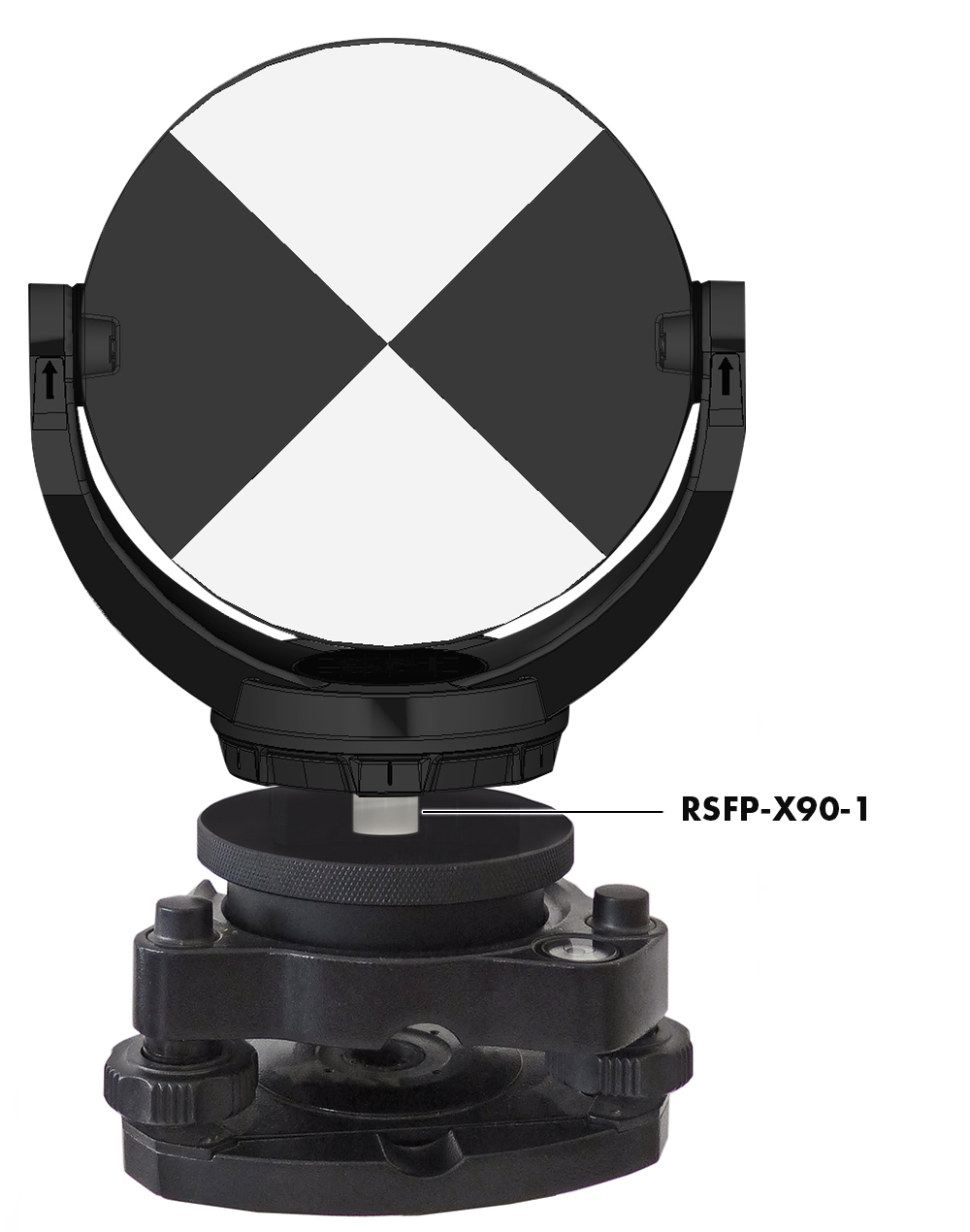

Example of use RSL422 on trivet Example of use RSL422M over RSMP380 Example of use RSL422M on RSSV-X90
Kippachshöhe 100 mm bei RSLB10M, RSL422M, RSMP380 und RS183
