RSL-X94M and RSL-X94M Mobil Mapping- or Scanner- and Drone targets, RSL-X96M and RSL-X97M with checkerboard pattern

RSL-X94M  Mobile Mapping,
Scanner and Ground Control Target

RSL-X95M Mobile Mapping,
Scanner and Ground Control Targets
also available with checkerboard pattern - Art. No RSL-X96M
black-and-white printed on one side
 also available with checkerboard pattern - Art. No RSL-X97M
black-and-white printed on one side
Tilting axis height 45 mm Tilting axis height 100 mm

A) When using these targets with a scanner or ground control, they are recognised by the instruments from a greater distance or height.


B) It is also possible to measure the reference points precisely in advance with a tachymeter or total station, whereby accuracies of ±1 mm can be achieved. See reference point RSFP-X90


C) In tunnels, the reference points RSFP-X90 to RSFP-X99 are first measured with the Mini-Prism RSMP390M or RSMP395M. The reference points are then populated with the RSL-X94M or RSL-X95M target.Thus, these targets provide perfect and precise orientation for mobile mapping.


D) For even more precise measurements using ground controls, the targets can be placed on a tripod directly above the centre of a prism.

RSL-X95M Mobile Mapping


RSL-X94M grey-white side on top,
tilting axis height 45 mm		 RSL-X95M grey-white side on top,
tilting axis height 100 mm

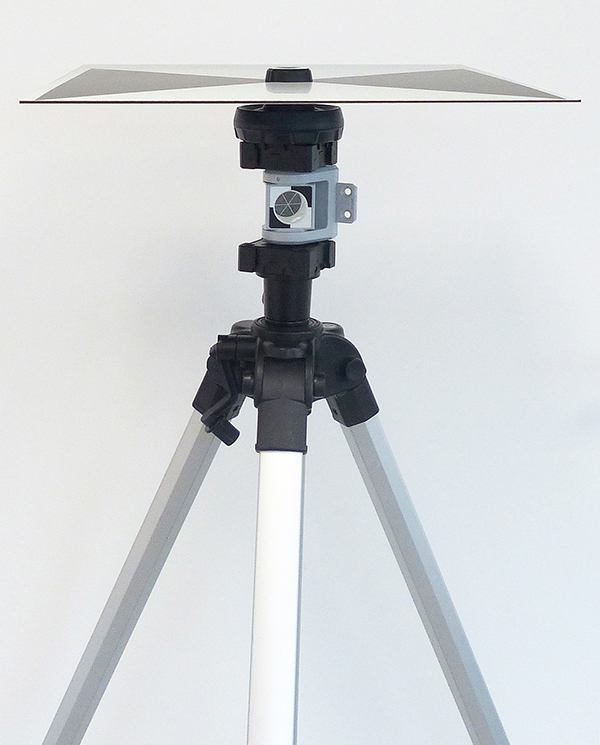

Example of use: RSL-X94M with Adapter RSA-H40 across the Mini Prism RSMP380.  Example of use in tunnel: RSL-X95M on RSFP-X99-11

Dimensioning file RSL-X94M, RSL-X95M, RSL-X96M and RSL-X97M for download.
Here you find a dimensioning file for each RS product

​
